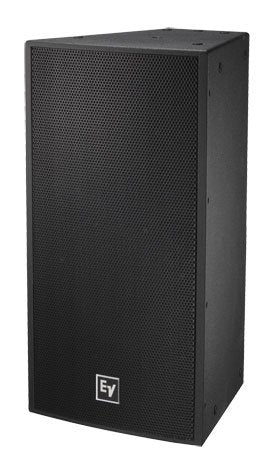

Electro-Voice EVF-1122D/66-WHT 2400W 12 inch 60x60 Indoor Passive PA Speaker - White

Please Note: Product shown in image is for illustrative purposes only. Actual product is white in color. The EVF-1122D/66-WHT from Electro-Voice is a premium 12-inch two-way full-range loudspeaker that features a 60 x 60 rotatable waveguide and is designed for far mid-far field long throw coverage pattern. Features: 3-inch DH7N titanium/neodymium HF compression driver Rotatable Constant-directivity waveguide Six available patterns with coverage from 60 to 120 97 dB sensitivity, 131 dB maximum SPL Power handling: 600 W continuous, 2400 W peak 4th-order passive crossover with HF protection Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG) Specifications: Environmental Specs Standard versions: IEC 60529 IP44, PI and FG versions: IEC 60529 IP55 Input Connections Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover Frequency Response (-3 dB) 57 - 18000 Hz Frequency Response (-10 dB) 49 - 21000 Hz Recommended High-Pass Frequency 65 Hz Sensitivity 1 W/1 m 97 dB Max. SPL/1m (calc) 131 dB Coverage (Nominal -6 dB) H 60 Coverage (Nominal -6 dB) V 60 System Power Handling (Continuous/Program/Peak) 600/1200/2400 Watts LF Transducer DVX3121A 12-inch (305mm) woofer LF Nominal Impedance 8 O HF Transducer DH7N 3-inch (76mm) diaphragm compression driver Crossover Frequency 1300 Hz Nominal Impedance (Passive) 6 O Minimum Impedance 6 O Enclosure Material 13-ply weather-resistant birch with EVCoat Grill 16 GA powder-coated galvanneal with screen behind Suspension (22) M10 threaded suspension points Height 768.6 mm (30.26") Width 406.3 mm (16") Depth 413.3 mm (16.27") Weight Net 29.7 kg (65.48 lbs) Shipping Weight 34.4 kg (75.84 lbs)
